EC-TDS Analyser & Conductivity Meter

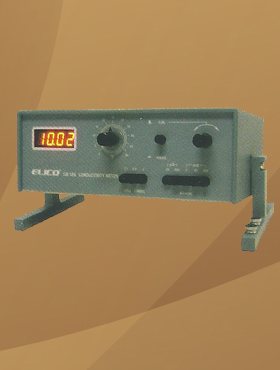

CM 180

• For conductometric titrations of acids, bases and specific organic compounds in aqueous & non-aqueous
     and biological media .
• Extendable to measure total dissolved solids.
• Temperature compensation from 0 to 50 ° C (Manual), Capacitive .

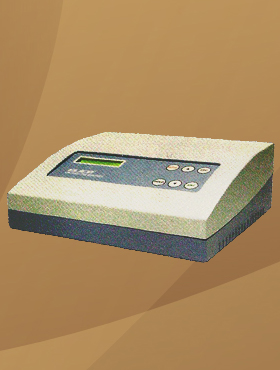

CM 183

• Auto Ranging
• Total dissolved solids (TDS) in water, aqueous & non-aqueous solutions
• Automatic / Manual temperature compensation from 0-50° C .

Applications

for measurement of conductance of aqueous & non-aqueous solutions in

• Cooling towers: demineralizer output; reverse osmosis; steam boilers; condensate return; waste streams; boiler blowdown; acid, salt and alkali concentrations; laboratory analysis; fruit peeling; oceanography, salinity & desalinization; level detection; chemical streams etc.

Industries & sectors which use conductance

• Power generation, steel, agriculture, hospitals, pharmaceuticals, textiles, chemicals, biological, semiconductor, electroplating, paper, petroleum, marine, sugar, food processing, beverage, brewing etc.

CM 180

Range	0 to 20, 200 mS
Accuracy	± 1% full scale
Repeatability	± 1% full scale
Readability	1 Unit

READOUT

3 1/2 Digit 7 Segment LED Display of 12.7 mm height

CM 183

	EC	TDS
Range	0 to 200 mS	1 ppm to 100 ppt
Accuracy	1% of range	1% of range

INPUT
Sensor	Conductivity cell	Conductivity cell
Connector	BNC	BNC

TEMP.COMPENSATION

0 to 50° C Auto / Manual

READOUT

2 Line 16 Character Dot Matrix Backlight LCD Module
