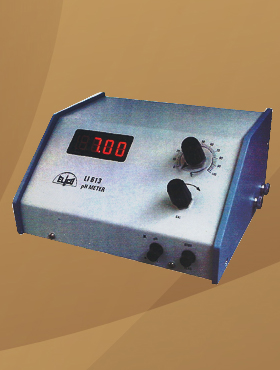

LI 613

Applications

For pH measurements in Chemical Laboratories of

  • Food & Beverage Processing, Dairies, Breweries and Distilleries
  • Purification of Drinking Water, Pollution Control and Sewage treatment
  • Aquaculture and Agriculture soil testing
  • Pickling, Electroplating, Engraving, Anodizing & Polishing Processes
  • Pharmaceutical, Cosmetics, Cement, Coal, Ash, Fuel & Crude Oil, Greases, Glasses, Acids, Chemical, Sugar and other Industries.

Specifications

SPECIFICATIONS

pH

Range : 0 to 14

Resolution : 0.01

Accuracy : ± 0.02

Repeatability : ± 0.01

Stability : ± 0.05 in 8 hours


EMF in mV

Range : ± 1999

Resolution : 1

Accuracy : ± 0.1% of full scale or ± 2

Repeatability : ± 1

INPUT : Impedance > 10 Ohm @ 25'C
ASSY. POTENTIAL CORRECTION Receptacle BNC ± 100 mV with 1 turn potentiometer
TEMP. COMPENSATION 0 to 100 C Manual
READOUT 3½ digit 7 segment LED of 12.7 mm height with polarity indication
POWER REQUIREMENT 230 V ± 10%,50 Hz, 10 Max. 15 VA
PHYSICAL DIMENSION Size (W x D x H ) in mm Weight in kg 170 x 165 x 88 Approx. 1.5
ACCESSORIES SUPPLIED With Instruments At extra Cost
Stand with Electrode holding clamp, Buffer Tablets and Polythene bottles. Combination pH Electrode
