PE 138

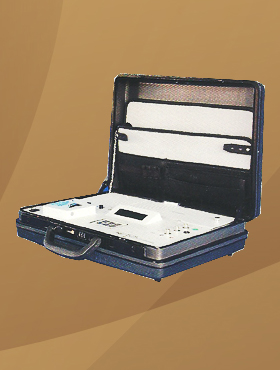

Microprocessor Based Water Quality Analyser
Applications
For Analysis of Water Quality In
- Drinking Water Supply System; Surface & Sub-surface Water for Agriculture; Aquaculture; Domestic and Industrial Process & Waste; Pollution Testing & Treatment Plants; Chemical, Pharmaceutical, Food, Beverage and Other Industries.
Specifications
| pH | EMF in mV | Temp. In°C | Salinity | |
| Range | 0 to14 | ± 1999.9 | 0 to 100 | 0 to 40 ppt |
| INPUT | ||||
| Sensor | CE/GE & RE | CE/GE & RE | Semiconductor | ISE (Cl) & RE |
| Impedance Ohm@25°C | >10 13 | >10 13 | --- | -- |
| Receptacle | BNC, Banana | BNC, Banana | Banana | BNC |
| Temp. Compensation | 0 to 100° C A/M | -- | -- | 0 to 50° C A/M |
| PARAMETERS | EC/TDS | DO in ppm | COLORIMETER | TURBIDITY |
| Range | 0 to 200 mS, 5 ranges 0-100ppt 5 ranges at TDS factor 0.5 |
0 to 20 | ± 2 Abs., 0 to 650T | 0 to 100 NTU |
| Accuracy | ± 1%of range | ± 0.1 | ± 0.05 Abs. | ± 2% |
| INPUT | ||||
| Sensor | Cond. Cell | Polarographic | Photodiode | Photodiode |
| Source | 1 KHz Sine Wave | DC Voltage | Tungsten Lamp | Tungsten Lamp |
| Receptacle | BNC | BNC | -- | -- |
| Temp. Compensation | 0 to 50°C A/M | 0 to 100°C A/M | -- | -- |
| READOUT | 2 Line 16 Character Dot matrix LCD Module |
